CARATTERISTICHE TECNICHE ASUS RAMPAGE II GENE:
| Socket |
1366 |
| CPU (Max Support) |
i7 |
| AM3 CPU Ready |
N/A |
| FSB / Hyper Transport Bus |
6.4GT/s |
| Chipset |
Intel® X58 |
| DDR2 Memory |
N/A |
| DDR3 Memory |
DDR3 800/1066/1333/1600(O.C) /1800(O.C) /2000 (O.C) Non-ECC,Un-buffered Memory - Triple channel memory architecture |
| DIMM Slots |
6 |
| Max Memory (GB) |
24 |
| PCI-Ex16 |
2 |
| PCI-Ex4 |
N/A |
| PCI |
1 |
| IDE |
1 |
| SATA |
8 |
| RAID |
0/1/5/10/JBOD |
| IEEE 1394 |
2 x 1394a ports (1 port at back I/O, 1 port onboard) |
| DIMENSIONI |
uATX Form Factor 9.6 inch x 9.6 inch 24.4 cm x 24.4 cm ) |
| BIOS |
16 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4, ACPI2.0a Multi-Language BIOS |
| AUDIO |
SupremeFX X-Fi onboard 8 -Channel High Definition Audio CODEC EAX® AdvancedTM HD 4.0 X-Fi CMSS®-3D X-Fi CrystalizerTM Creative ALchemy Supports Optical S/PDIF out ports on rear |
| LAN |
Realtek® 8111C PCIe Gigabit LAN controller featuring AI NET2 |
| ASUS AI Lifestyle |
Power Design - 8-phase CPU power - 2-phase QPI/DRAM power - 2-phase NB power - 2-phase Memory power CPU Level Up Keyboard-TweakIt Memory Level Up iROG Extreme Tweaker Loadline Calibration Intelligent overclocking tools: - ASUS AI Booster Utility - O.C. Profile Overclocking Protection: - COP EX (Component Overheat Protection - EX) - Voltiminder LED - ASUS C.P.R.(CPU Parameter Recall) |
| SLI |
Y |
| CrossFire |
Y |
Maggiori informazioni le trovate di seguito:
http://it.asus.com/products.aspx?modelmenu=2&model=2853&l1=3&l2=179&l3=815&l4=0

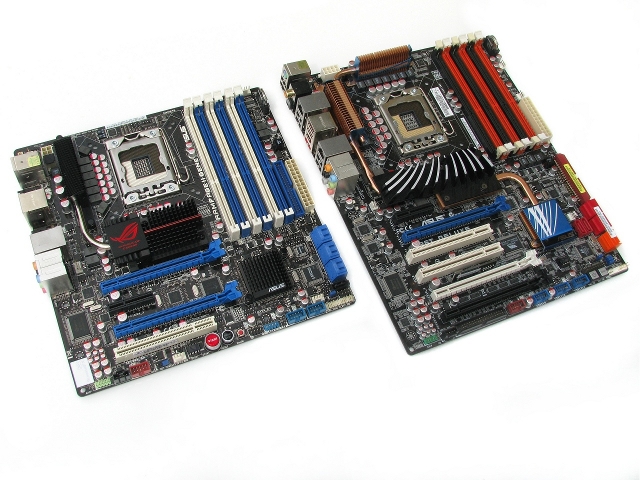

La Asus Rampage II Gene pur essendo studiato per un formato "microATX" dalle ridotte dimensioni, rispetto alle normale schede madri "ATX", racchiude in se tutte le più avanzate features tecnologiche.
http://it.asus.com/products.aspx?modelmenu=2&model=2853&l1=3&l2=179&l3=815&l4=0
La Asus Rampage II Gene pur essendo studiato per un formato "microATX" dalle ridotte dimensioni, rispetto alle normale schede madri "ATX", racchiude in se tutte le più avanzate features tecnologiche.
